Price: $ 649.00

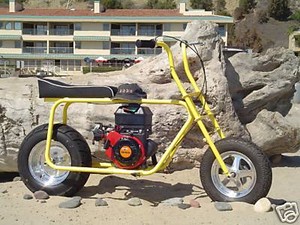

Extra Large Mini Bike Rolling Chassis PIT BIKE

SPORT LIKE RACER BIKE, FOR HARD CLEAN SURFACES ONLY!!! THIS IS NOT A TRAIL BIKE!!!

CNC, MIG welded Rolling Chassis Includes:

  • 1" Frame, forks, bare metal.    It is recommended you paint or powder coat prior to assembly.
  • Rear disc brake (heavy duty).
  • Throttle assembly & dummy grip, brake lever cable and kill button.
  • Front  tire - KENDA 140x 90x 10, rear tire  KENDA 140x 90x 10
  • 10 " polished alloy Douglas wheels, front and rear
  • Custom front and rear hub assemblies
  • Sprocket, rear 54 tooth #41, axles,  nylock nuts and spacer stock.
  • Steering stem, (2 bearing) with complete hardware kit
  • Seat 19"x8"x5"
  • Fold up footpegs with welded bungs!!

Features:

  • Fender mounts -  front and rear
  • Shipped ready to assemble.

Specs:

  • CAD designed, CNC bent tube, CNC laser cut plates, MIG welded in steel fixtures.
  • Wheelbase - 47 inch.  Handlebar Height - 41 inch.  Seat Height - 30 inch.  1" OD .083 wall steel tube frame and forks. COMES BARE METAL . ASK ABOUT OUR

WE CAN ALSO ADD A FRONT DISC BRAKE ON THIS MODEL, PLEASE ASK FOR DETAILS.

NOT Included:

  • Engine, clutch or chain

\"\"

Note: You may request a windowed wheel instead of the solid front for an additional $35.



This product does not conform to Federal Motor Vehicle Standards.  Please check your local Dept. of Motor Vehicle for regulation in your state.

This product should not be used by persons without excellent vision, balance, coordination, reflex muscle and bone strength and good decision making capabilities.  This product should not be used by minors without adult supervision.  This product should not be used by persons unwilling or unable to take responsibility for their own actions.  The buyer/user of this product assumes ALL RISKS & LIABILITIES associated with its use.  BAD DOG assumes none of the RISKS OR LIABILITIES associated with the use of this product.  To minimize these RISKS, the user must wear safety helmet, goggles, elbow & knee pads and appropriate footwear.

Your purchase and payment are acknowledgement and acceptance of sole liability.
